Edge computing unearths new value for mining and metals applications

ยท 2800 words, 11 min read

In this informative White Paper from Emerson, their team looks at how the industrial internet of things can allow data to be leveraged to achieve new levels of efficiency.

Despite fluctuating demand for extracted commodities, the mining and metals industries face several new challenges, namely balancing profitability and production efficiency while managing sustainability and minimising environmental impact.

Furthermore, it is critical that production efficiency be achieved in conjunction with flexibility to ensure industry stays nimble and adaptable in a highly volatile world.

These industries are embracing the digital transformation journey, which includes incorporation of industrial internet of things (IIoT) products and concepts so that data can be leveraged to achieve new levels of production efficiency.

Gathering, storing and analysis of production and machine data form the building blocks in this strategy and are integral to the implementation effectiveness.

Mining, like many other industrial sectors, generates large volumes of data. Much of the initial IIoT discourse focused on cloud computing, which meant that large quantities of raw data would be dispatched to cloud-based data lakes, analysed and used in optimisation algorithms to drive real-time decision making.

Naturally, mining operations are often distributed throughout many remote locations with limited infrastructure, and this presents some connectivity challenges (Figure 1). When factoring in cloud architecture, data costs and latency, a pure cloud computing solution may not be the best answer to realise the full potential of digital transformation.

Figure 1.jpg

Figure 1. Mining operations are usually distributed in remote areas, with automation and instrumentation systems generating significant quantities of data useful for analytics and optimisation efforts.

Traditional programmable logic controllers (PLCs) have typically formed the front-line operational technology (OT) automation platform used throughout mining operations. These devices are commonly used for real-time control, but only more recently have been tapped for implementing higher level IIoT communications and analysis. This change is enabled by improved IT computing methods which are merging with OT platforms, resulting in capable edge-located IT/OT controllers. Data available at the operational edge is now easily accessible and able to be processed and transmitted, paving the way for analytics and optimisation deployments.

New systems can be natively designed and built to take advantage of edge automation, and current systems can be retrofitted with edge controllers installed in parallel with existing automation to obtain the most important data from legacy hardware and newer IIoT devices. This article explores how edge automation plays a foundational role for applying digital transformation in the mining and metals industries.

Process overview

Mining and metals processing operations consist of many areas with opportunities for improvement through automation and data gathering (Figure 2). Sometimes the automation and communication platforms are delivered as part of original equipment manufacturer (OEM) machinery or equipment skids, while other times they are “stick built” with equipment and systems constructed in the field.

Mining site

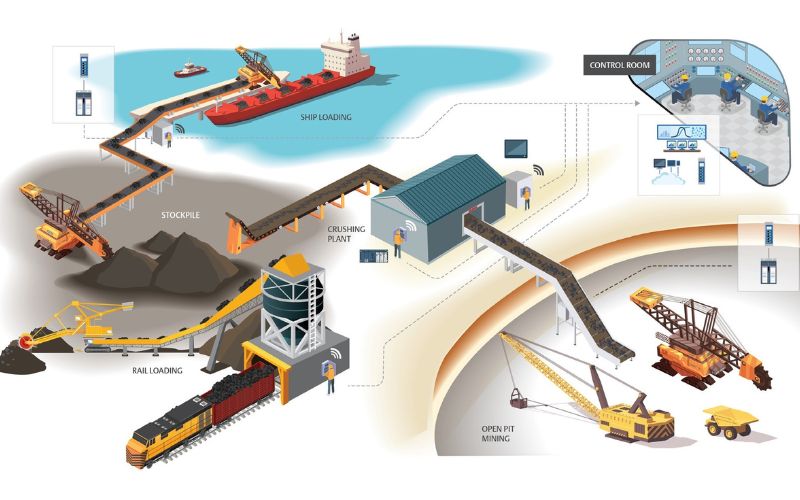

Figure 2.jpg

Figure 2. Many aspects of mining operations require some level of automation, and nearly every area creates data useful for analysis and operation.

PLCs play an important role in almost every area and may include local human machine interfaces (HMIs). Remote terminal units (RTUs) are also widely used, providing some functionality similar to PLCs and adding remote connectivity features.

Increasingly, systems incorporate intelligent field devices like variable frequency drives (VFDs) that can supply extensive operational and diagnostic data. Larger processing areas may rely on a distributed control system (DCS), and plantwide operations may be monitored by a supervisory control and data acquisition (SCADA) system.

Leach plant

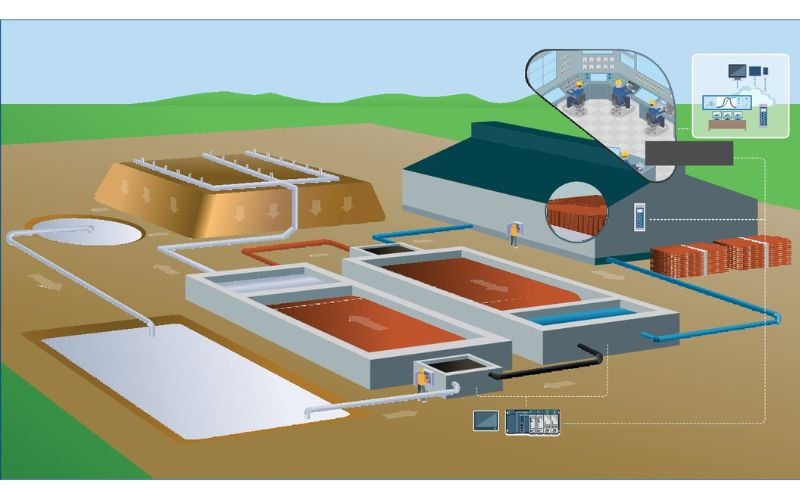

Figure 3.jpg

The following is a summary of typical operations:

  • Extraction: Pit and underground tunnel equipment and conveyors, characterised by deployment across large
  • Material handling: Crushers, stackers, screeners and autonomous
  • Comminution: First stage semi-autogenous grinding mills and secondary stage ball
  • Separation: Includes flotation cells, leaching, thickeners, solvent extraction, and
  • Refining: Systems such as electrowinning, electrolysis and smelting for extracting and purifying
  • Logistics: Rail and port operations for handling mining
  • Utilities: Includes electrical power distribution and monitoring to support other
  • Water management: Systems to supply, treat, store, recover and reuse water to provide the right quantity and quality needed for processing.

Because automation platforms and mining equipment have generally become more intelligent over the years, there are more opportunities than ever for obtaining the right field data and acting upon it to overcome operational challenges.

Edge control platforms surmount challenges

It has been possible for many years to stitch together various traditional automation technologies with satellite and radio communications, achieving some level of automated control and remote visibility. However, these solutions have usually been costly and difficult to create, operate and support.

This has changed with the introduction of a new class of automation platform called an edge controller (Figure 4).

Figure 4.jpg

Figure 4: Edge controllers combine robust RTOS deterministic control (similar to a PLC or RTU) with general-purpose computing capabilities such as analytics, data storage and extensive communication options.

An edge controller combines a real-time operating system (RTOS) with a general-purpose operating system (OS) like Linux (Figure 5).

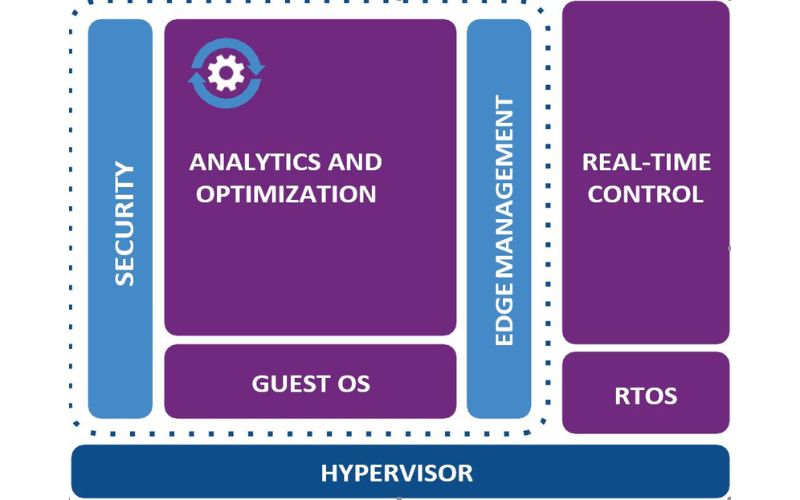

Figure 5.jpg

Figure 5. Because edge controllers seamlessly and securely coordinate deterministic control with general purpose computing on one platform, it is easier for users to integrate field control and monitoring with higher level supervisory systems.

The RTOS provides direct deterministic control and monitoring of field equipment, much like a PLC or RTU. In fact, edge controllers can be used just like PLCs, even if users do not immediately take advantage of additional features, providing a future-proof design.

The general purpose guest OS enables capabilities such as advanced computing, analytics and data storage. In addition, the general purpose OS offers much more capable communication options, even over the low-bandwidth connections commonly encountered with mining operations.

Because the RTOS and general-purpose OS are virtualised at the hardware level on-board the edge controller, they are completely independent from both a hardware and software standpoint. In fact, each OS can be independently acted upon and rebooted. However, the two OSs can communicate with each other securely using industry-standard OPC UA connectivity. This unique configuration preserves the robust ‘always-on’ RTOS operation while enabling modern computing capabilities.

Edge controllers are physically built to withstand the harsh conditions found at remote mining sites, including extremes of temperature, contaminants and vibration. The on-board general purpose OS offers the following computing advantages:

  • Security: Includes defenses suitable for prevalent IT-like issues like network storms and Denial of Services
  • OT Connectivity: Natively supports OT-oriented communication protocols, including legacy versions such as PROFINET and Modbus/TCP, as well as newer versions with built-in security like OPC
  • IT Connectivity: Natively supports IT-oriented communication protocols with built in security such as MQTT and secure sockets (HTTPS, SSL, FTPS), providing appropriately secure communications
  • Flexibility: Users can develop applications in IT-oriented languages like C, C++, Python, Java, and many more.

OT personnel can maintain a focus on the deterministic portion of the system they are most familiar with, and IT personnel can work with the general purpose system. The two groups can work completely in parallel, or they can coordinate and crossover as needed or desired in a clearly defined manner. Remote connectivity makes edge controllers a natural fit for mining operations, where limited staff may need to support assets distributed over large work sites or anywhere in the world.

Edge controllers can be integrated into existing systems to provide new capabilities without disrupting proven operation. Or, edge controllers can provide a complete control, monitoring and analytical solution for new installations.

Mining applications with edge control solutions

Listed here and described in subsequent sections are a few specific mining applications which can benefit from edge control:

  • Ore tracking
  • Leveraging vibration data
  • Blending and stockyard optimisation
  • Power optimisation.

Ore tracking

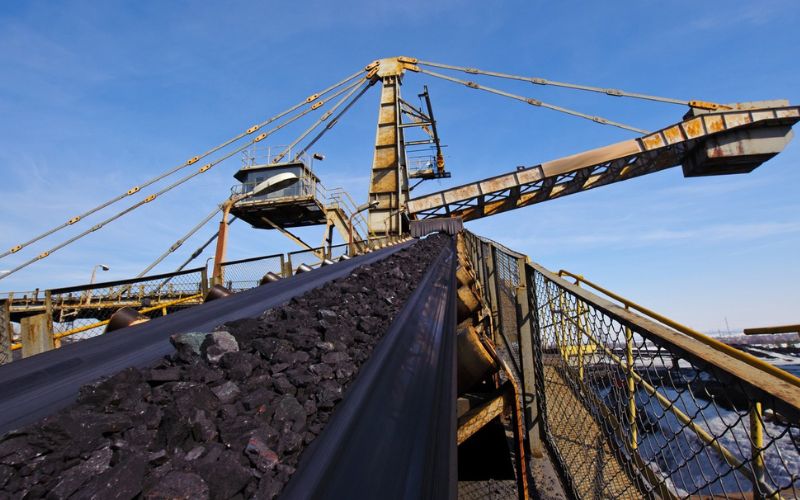

Figure 6.jpg

Managing ore characteristics and variability are a key challenge after it is extracted from the ground because optimal downstream processing is very much dependent on ore size and quality. The initial material handling and conveying processes use large mechanical equipment which can be prone to failure if large fragments of ore pass through the system undetected. Therefore, the ability to track ore size as it progresses through processing helps mine operators identify conditions which could potentially cause downstream blockages or mechanical breakdown of equipment, resulting in hours of unplanned downtime.

By leveraging a combination of sensors, instrumentation and edge controllers, the ore loading on conveyors can be analysed. Live parameters like conveyor belt tension can be monitored and analytically compared with historic data. Potential deviations can be quickly identified, and the control system can intervene to prevent a downtime incident.

Ore quality also impacts downstream processing. Tracking ore characteristics enables the mine operator to better understand energy consumption, plant feed rates and ore losses, helping them to fine tune process parameters and optimise the overall profitability per ton of ore processed.

Tracking ore quality is perhaps the most crucial aspect of managing mine processing plants. The mineral concentration varies in the ore deposit itself. After extraction, ore is sampled and results regarding ore size, fines content, moisture level and more can be transmitted to the edge controller.

While this sampled load of ore is being transported to the processing plant by haulage vehicles, the edge controller can use the raw data regarding ore characteristics to perform analysis through embedded algorithms, and then use the results to determine the most beneficial settings for improved control of the processing plant.

For instance, based on the incoming ore size, the edge controller may adjust the gap on the crusher circuit to ensure higher efficiency. Based on the fines content, the edge controller could adjust downstream mill speed to optimise energy consumption and ensure the milling step produces the optimal size distribution for higher recovery of metal in the flotation circuit.

Additionally, the associated dosage of chemical reagents could be optimised for best effectiveness and minimised waste.

Because of the unique location and performance of an edge controller, it can take multiple inputs, perform analyses, and immediately respond to and act on changes in ore characteristics. This kind of edge-enabled analysis delivers significant savings on operational costs and maximum metal recovery due to instantaneous decisions made on premise—rather than the latency challenges of running analytics in a cloud-based solution and then trying to implement the associated operational changes in a timely manner.

Leveraging vibration data

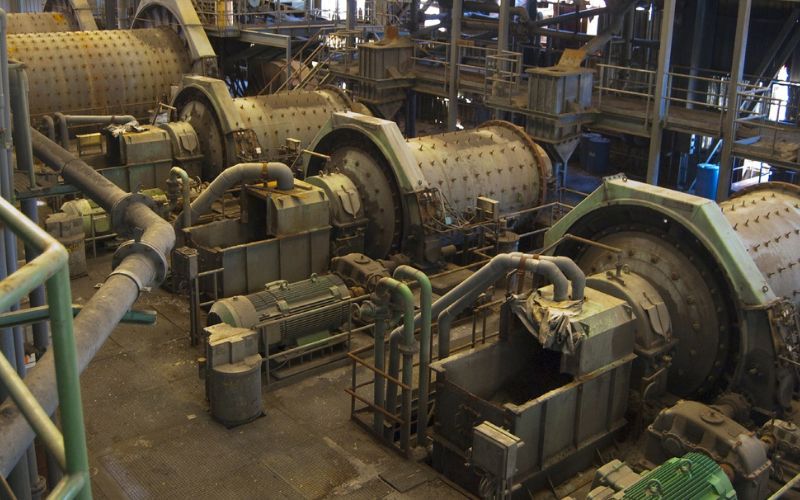

Figure 7.jpg

Mining is a mechanically intensive process with many pieces of rotating equipment. Vibration is inevitably a problem, but if it is detected and analysed it can be used to predict impending operational issues.

Mine processing equipment consists of high capital expenditure (CAPEX) and operational expenditure (OPEX) items. Tracking key process indicators (KPIs)—such as overall equipment effectiveness (OEE), equipment availability, and mean time between failure (MTBF)—empowers operators to proactively manage maintenance and sustain production levels.

Equipment such as conveyors, crushers, stacker reclaimers, shiploaders and mills are prone to failure due to vibration. At the machine automation level, it is possible to collect a huge amount of data at a high frequency to measure vibration, temperature and noise via sensors and instrumentation. The raw data itself is too excessive for transmission to the cloud due to costs and bandwidth issues.

A better option is to relay this large volume of machine data to an edge controller, which can then use the raw data inputs to complete some preconfigured computations and send the essential time-series data to a supervisory system.

This concentrated information is much more suitable for transmitting via low-bandwidth serial, Ethernet, cellular or other networks.

The operations team, which can be located centrally or throughout the world, can then apply analytics to this time-series data to establish baseline equipment profiles and assess if any part of the system is becoming mechanically compromised from a processing or hardware standpoint. With this information, the team can safely bring systems offline before an adverse breakdown occurs. This early warning system can be used in conjunction with a proactive maintenance strategy to plan shutdowns and reduce downtime. Here, the edge controller together with embedded algorithms will give plantwide visibility into mechanical integrity, ensuring greater overall equipment availability.

For instance, a hydrocyclone is used to separate material based on size. This particle size classification is critical to the efficiency of flotation cells downstream and overall metal recovery. Roping and plugging are the most common operational issues. The former occurs when too many solids are discharged out the cyclone overflow, which looks like a rope is being discharged from the underflow. Plugging, on the other hand, is a situation where something is stuck inside processing equipment and there is no separation taking place. This is the worst-case scenario because all the material within the cyclone is sent along to flotation. If undetected for too long, plugging will require flotation cell shutdown to physically remove accumulated material.

Measuring vibration of hydrocyclones is an effective way to detect the onset of roping or plugging events. Two wired vibration sensors attached externally on each of the cyclones transmit process real-time vibrational data to an edge controller, where it can undergo local analytical processing to identify problem conditions.

Blending and stockyard optimisation

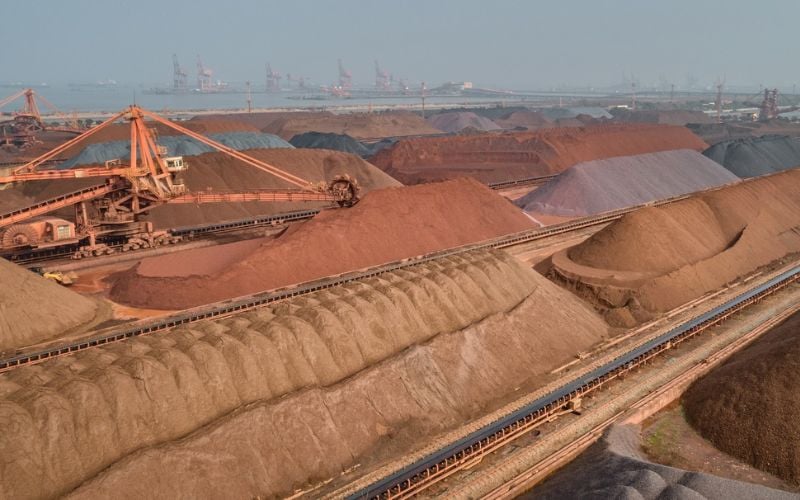

Figure 8.jpg

Bulk commodities like iron ore and coal are part of complex value chains, and mine operators are challenged to deliver these commodities at the required specification to end customers. Tracking and blending of ore is a vital part of the operation, and edge controllers can help customers track material and optimise supply chain logistics.

Autonomous haulage vehicles have become widely adopted in the mining industry, and it is critical to manage diesel consumption and optimise routes to manage their overall operating costs. Onboard controllers allow for sophisticated vehicle control with features like anti-collision and position monitoring, however there is no embedded PLC and the vehicles do not have permanent connectivity to a plant network.

Mine operators can get valuable insight from monitoring fuel pump pulses and various other raw data which can be obtained via controller area network (CAN) bus. CAN bus is an industry standard protocol used with many types of vehicles.

In terms of route planning, the haulage truck routes can be organised in conjunction with other mechanical equipment like excavators and the crusher. In situations where a mine excavator goes offline, an associated edge controller can then communicate with haulage trucks via wireless to reroute these vehicles to operational excavators and avoid situations where the crusher remains idle.

On the other hand, routes for multiple trucks require careful scheduling to avoid situations where too many haulage vehicles are queueing to offload ore into the crusher plant. This kind of live route optimisation can deliver significant savings for mine operators.

Additionally, raw data paired with analytics delivered by an edge controller can provide rich insights into the integrity of the vehicle, supporting preventative maintenance. The edge controller can be used to analyse hydraulic temperatures and other vehicle operating conditions during off loads into the crusher plant, and then relay this time-series data back to the centralised control center for detailed analysis.

Optimisation of power consumption

Figure 9.jpg

Aside from the mechanical intensity of operations, energy consumption of mining assets is another significant part of overall operating costs. In many instances, due to the remoteness of operations, mine operators must build and manage their own power infrastructure.

Much of the existing power infrastructure is based on diesel generators, and at many sites little has been done to proactively optimise plant-wide energy consumption or optimise fuel efficiency. With the ongoing pressure for environmental sustainability, mine operators are also being challenged to reduce emissions associated with diesel generators.

Mining power plants typically run with a large spinning reserve, but there is often little visibility into active plant operations, specifically when energy intensive equipment is coming online. When there is a lack of coordination for equipment going from standby to duty mode, sites are likely to experience brown outs due to power surges.

In the case of a standalone power plant, diesel generators are well-equipped with instrumentation and sensors, and this data can be sent to an edge controller via wireless connection. The edge controller can also analyse other raw data from the processing plant to identify when more power will be needed. Armed with this information and connectivity, the edge controller can make step changes to the power plant through its real-time operating system.

In the case where large-energy items like a semi-autogenous grinding or bill mill goes into duty mode, the edge controller can anticipate the need for spinning reserve and interface with the diesel generator to effectively adjust power requirements.

In other cases where the power plant is co-located with mining operations, power plant data can be sent to the edge controller through the plant network for effective optimisation. As mine operators continue to explore renewable energy-diesel hybrid solutions, edge controllers will play a critical role in optimising overall power consumption.


Mining and metals operations are much more than low-tech digging ventures. These industries are looking for any technological advantage to help them efficiently and cost-effectively adapt to production and market changes in a sustainable and environmental manner. While these operations use many types of traditional equipment and established operating methods, there are many opportunities to realise benefits by embarking on a digital transformation.

Edge controllers are a modern automation platform for enabling digital transformation and effectively applying IIoT concepts. Because mining operations are most often remotely located, any useful technologies must be suitable for these conditions and provide extensive communication options. Edge controllers are built for this OT environment, and have the latest and most secure IT computing and networking features. Edge controllers are especially compelling for this service because they can gather and store data locally, process and analyse it, directly inform operational logic of optimal settings, and relay the most essential information to higher level systems.

The result is more efficient, environmentally friendly, and safer operations for all types of mining and metals operations. These benefits can be realised by applying edge controllers to both new designs and retrofit applications.
